2204-1207 | WAGO
2-wire protective earth terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, yellow/green, 2204-1207
Unit Price (€ / pc.)
3.3082 € *
Available: 38 pcs.
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
3.0107 €
50 pcs.
2.7370 €
100 pcs.
2.4871 €
*incl. VAT plus shipping costs
Subject to prior sale

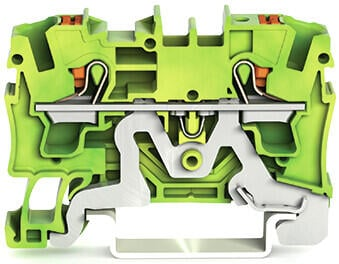

2-wire protective earth terminal, 2204-1207, WAGO
2-conductor ground terminal block, with push-button, 4 mm², with test port, suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in cage clamp, 4.00 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 20 to 10 | |
| Number of terminals | 2 | |
| Height | 52.3 mm | |
| Width | 6.2 mm | |
| Pin number | 1 pole | |
| Colour | yellow/green | |
| Version | 2-wire protective earth terminal | |
| Cable cross-section | 0.5-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
