2202-6407 | WAGO
4-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, green-yellow, 2202-6407
Unit Price (€ / pc.)
4.998 € *
Standard delivery time from the manufacturer is: 3 Weeks

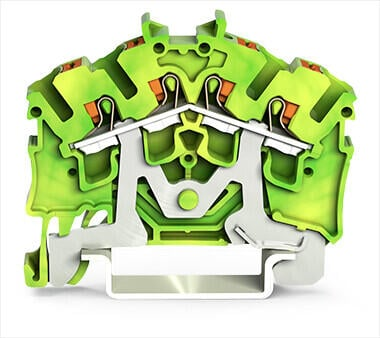

Terminal block, 2202-6407, WAGO
4-conductor ground terminal block, with push-button, 2.5 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 4 | |
| AWG cross-section | AWG 22 to 12 | |
| Colour | green-yellow | |
| Connection | spring-clamp connection | |
| Cable cross-section | 0.25-4.0 mm² | |

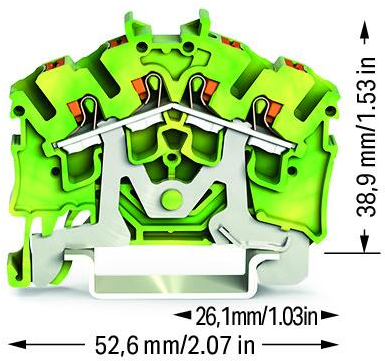

| Width | 5.2 mm | |
| Height | 52.6 mm | |
| Version | 4-wire protective earth terminal | |
| Pin number | 1 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
