2202-2704 | WAGO
Feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, blue, 2202-2704
Unit Price (€ / pc.)
2.5109 € *
Standard delivery time from the manufacturer is: 3 Weeks

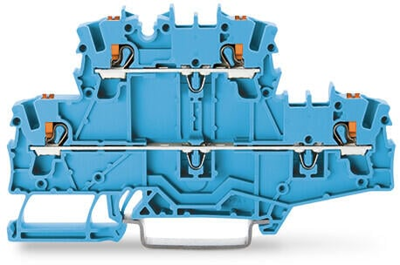

Terminal block, 2202-2704, WAGO
Double-deck terminal block, with push-button, Through/through terminal block, N/N, without marker carrier, for Ex e II and Ex i applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Version | feed-through/feed-through terminal block | |
| Number of terminals | 4 | |
| Colour | blue | |
| Width | 5.2 mm | |
| Rated current | 24 A | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated surge voltage | 8 kV | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Height | 92.5 mm | |
| AWG cross-section | AWG 22 to 12 | |
| Degree of soiling | 3 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
