2202-1907 | WAGO

2-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, green-yellow, 2202-1907

Order No.: 44P8745
EAN: 4066966083118
MPN:
2202-1907
Series: TOPJOB S
2202-1907 WAGO Series Terminals Image 1
2202-1907 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
6.6521 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.6521 €

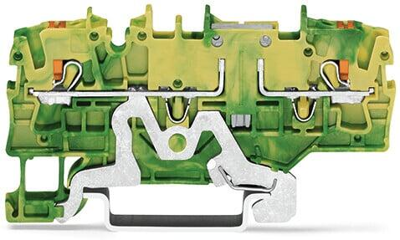

Terminal block, 2202-1907, WAGO

2-conductor ground terminal block, with push-button, 2.5 mm², side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Filter Property Value
Pin number 1 pole
Number of terminals 2
Height 72.9 mm
Colour green-yellow
Degree of soiling 3
Cable cross-section 0.25-4.0 mm²
Version 2-wire protective earth terminal
Connection spring-clamp connection
AWG cross-section AWG 22 to 12
Width 5.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
