2202-1772 | WAGO
3-wire disconnect and measuring terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, orange, 2202-1772
Unit Price (€ / pc.)
4.3435 € *
Available in 5 Days: 220 pcs. - if ordered today

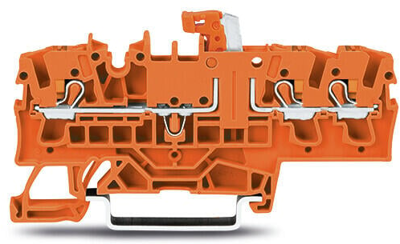

Terminal block, 2202-1772, WAGO
3-conductor disconnect/test terminal block, with push-button, test option, orange disconnect link, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 3 | |
| AWG cross-section | AWG 22 to 12 | |
| Colour | orange | |
| Connection | spring-clamp connection | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.25-4.0 mm² | |

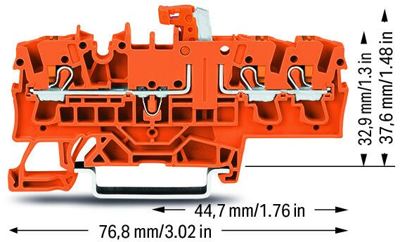

| Width | 5.2 mm | |
| Height | 76.8 mm | |
| Rated surge voltage | 6 kV | |
| Version | 3-wire disconnect and measuring terminal | |
| Pin number | 1 pole | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
