2202-1711 | WAGO
3-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 6.3 A, 6 kV, gray, 2202-1711
Unit Price (€ / pc.)
6.4736 € *
Available: 29 pcs.

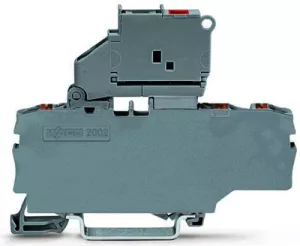

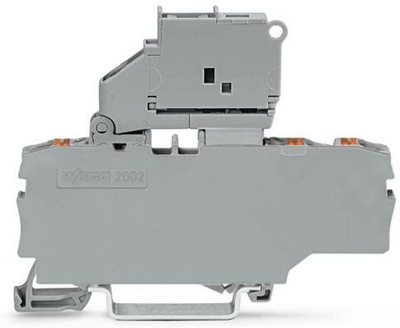

Terminal block, 2202-1711, WAGO
3-conductor fuse terminal block, with pivoting fuse holder, and end plate, for 5 x 20 mm miniature metric fuse, with push-button, without blown fuse indication, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 250 V | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 22 to 12 | |
| Number of terminals | 3 | |
| Height | 76.8 mm | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Pin number | 1 pole | |
| Colour | gray | |
| Version | 3-wire fuse terminal | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 6.3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
