2202-1311/1000-411 | WAGO

3-conductor component terminal block, spring-clamp connection, 0.25-4.0 mm², 1 pole, gray, 2202-1311/1000-411

Order No.: 44P8834
EAN: 4066966324365
MPN:
2202-1311/1000-411
Series: TOPJOB S

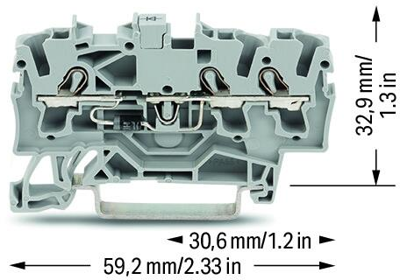

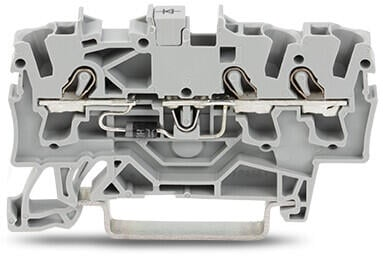

2202-1311/1000-411 WAGO Series Terminals Image 1
2202-1311/1000-411 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.9147 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.9147 €

Terminal block, 2202-1311/1000-411, WAGO

Component terminal block, 3-conductor, with diode 1N4007, anode, right side, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Filter Property Value
Pin number 1 pole
Connection spring-clamp connection
Number of terminals 3
AWG cross-section AWG 22 to 12
Version 3-conductor component terminal block
Colour gray
Width 5.2 mm
Height 59.2 mm
Cable cross-section 0.25-4.0 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
