2201-1407 | WAGO
4-wire protective earth terminal, spring-clamp connection, 0.25-2.5 mm², 1 pole, green-yellow, 2201-1407
Unit Price (€ / pc.)
4.6410 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.3197 €
50 pcs.
3.9746 €
100 pcs.
3.6176 €
*incl. VAT plus shipping costs
Subject to prior sale

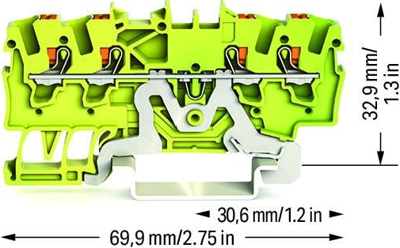

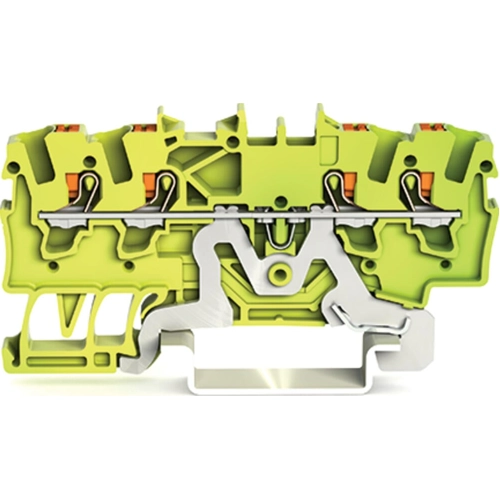

Ground terminal block, 2201-1407, WAGO
4-conductor ground terminal block, with push-button, 1.5 mm², with test port, suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,50 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 14 | |
| Number of terminals | 4 | |
| Height | 69.9 mm | |
| Colour | green-yellow | |
| Width | 4.2 mm | |
| Connection | spring-clamp connection | |
| Pin number | 1 pole | |
| Version | 4-wire protective earth terminal | |
| Cable cross-section | 0.25-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
