2201-1307 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.25-2.5 mm², 1 pole, green-yellow, 2201-1307
Unit Price (€ / pc.)
4.3197 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
4.0222 €
50 pcs.
3.7009 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

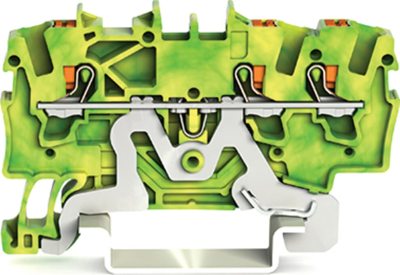

Ground terminal block, 2201-1307, WAGO
3-conductor ground terminal block, with push-button, 1.5 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,50 mm², green-yellow.

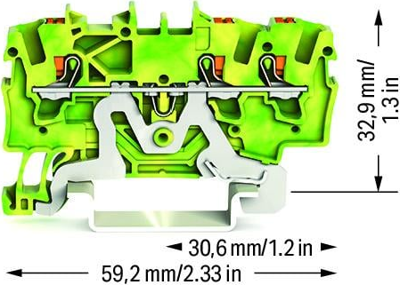

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Number of terminals | 3 | |
| Height | 59.2 mm | |
| Colour | green-yellow | |
| Cable cross-section | 0.25-2.5 mm² | |
| Version | 3-wire protective earth terminal | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 22 to 14 | |
| Width | 4.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
