2052-1207 | WAGO
2 wire mini protective earth terminal block, spring-clamp connection, 0.25-4.0 mm², 1 pole, green-yellow, 2052-1207
Unit Price (€ / pc.)
3.0702 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8560 €
50 pcs.
2.6299 €
100 pcs.
2.3919 €
*incl. VAT plus shipping costs
Subject to prior sale

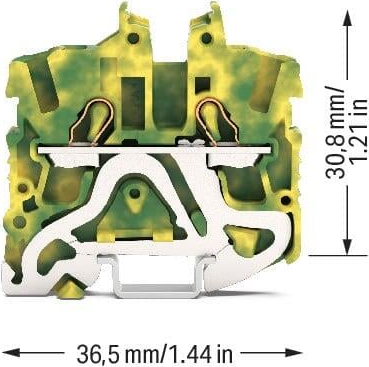

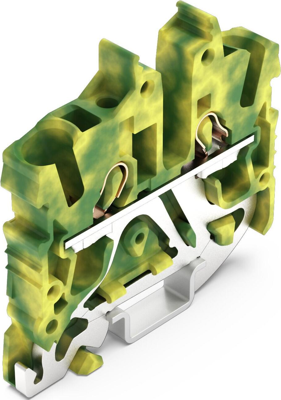

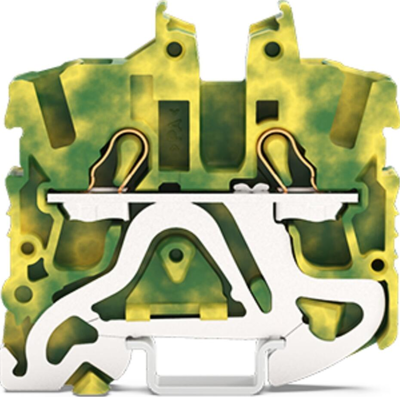

Ground terminal block, 2052-1207, WAGO
2-conductor miniature ground terminal block, with operating slots, 2.5 mm², with test port, side and center marking, for DIN-15 rail, Push-in CAGE CLAMP, 2,50 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 12 | |
| Number of terminals | 2 | |
| Height | 36.5 mm | |
| Colour | green-yellow | |
| Width | 5.2 mm | |
| Connection | spring-clamp connection | |
| Pin number | 1 pole | |
| Version | 2 wire mini protective earth terminal block | |
| Cable cross-section | 0.25-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
