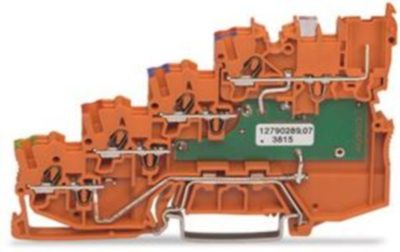

2020-5477/1102-953 | WAGO
4-wire initiator supply terminal, spring-clamp connection, 0.14-1.5 mm², 13.5 A, 4 kV, orange, 2020-5477/1102-953
Unit Price (€ / pc.)
13.3518 € *
Standard delivery time from the manufacturer is: 3 Weeks
Sensor supply terminal block, 2020-5477/1102-953, WAGO

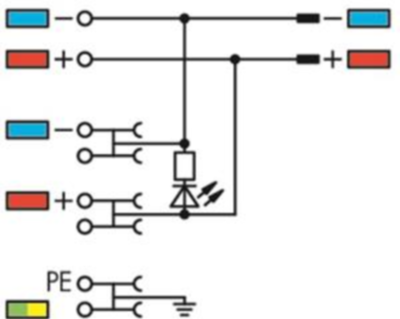

4-conductor sensor supply terminal block, LED (green), with ground contact, with pluggable signal level, 1 mm², Push-in CAGE CLAMP, 1,00 mm², orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Number of terminals | 5 | |
| Width | 7 mm | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 24 to 16 | |
| Rated Voltage | 250 V | |
| Version | 4-wire initiator supply terminal | |
| Cable cross-section | 0.14-1.5 mm² | |
| Height | 97.3 mm | |
| Length | 52.4 mm | |
| Rated current | 13.5 A | |
| Rated surge voltage | 4 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
