2020-5417 | WAGO
4-wire initiator terminal, spring-clamp connection, 0.14-1.5 mm², 13.5 A, 4 kV, gray, 2020-5417
Unit Price (€ / pc.)
8.5799 € *
Standard delivery time from the manufacturer is: 3 Weeks

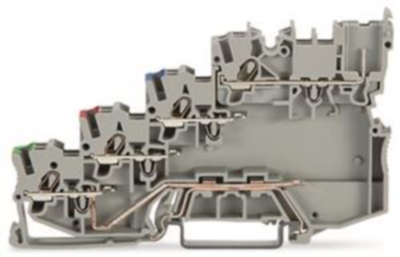

Sensor terminal block, 2020-5417, WAGO

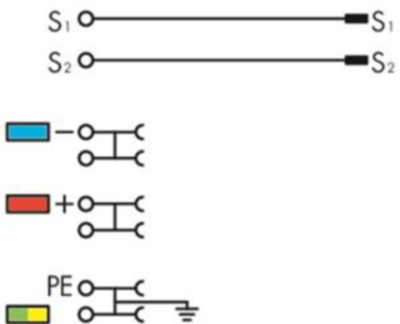

4-conductor sensor terminal block, for PNP (positive) switching sensors, with ground contact, 1 mm², Push-in CAGE CLAMP, 1,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Colour | gray | |
| Rated current | 13.5 A | |
| AWG cross-section | AWG 24 to 16 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Version | 4-wire initiator terminal | |
| Length | 52.4 mm | |
| Rated surge voltage | 4 kV | |
| Number of terminals | 5 | |
| Rated Voltage | 250 V | |
| Width | 7 mm | |
| Degree of soiling | 3 | |
| Height | 97.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
