2020-5372/1102-953 | WAGO

3-wire initiator supply terminal, spring-clamp connection, 0.14-1.5 mm², 13.5 A, 4 kV, orange, 2020-5372/1102-953

Order No.: 43P3371
EAN: 4055143523837
MPN:
2020-5372/1102-953
Series: TOPJOB S

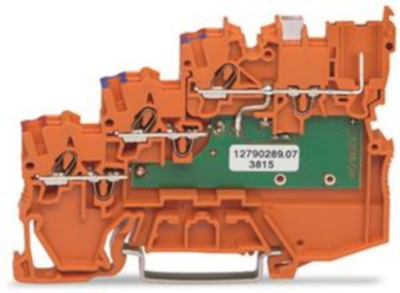

2020-5372/1102-953 WAGO Series Terminals Image 1

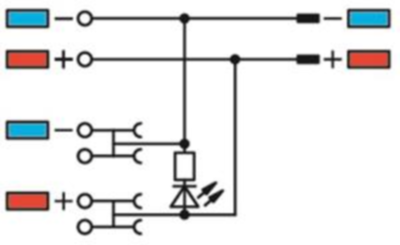

2020-5372/1102-953 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
11.3407 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.3407 €

Sensor supply terminal block, 2020-5372/1102-953, WAGO

3-conductor sensor supply terminal block, LED (green), with pluggable signal level, 1 mm², Push-in CAGE CLAMP, 1,00 mm², orange.

Technical specifications
Colour orange
AWG cross-section AWG 24 to 16
Rated current 13.5 A
Width 7 mm
Height 81.1 mm
Length 52.4 mm
Cable cross-section 0.14-1.5 mm²
Number of terminals 4
Version 3-wire initiator supply terminal
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 250 V
Rated surge voltage 4 kV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
