2020-5311 | WAGO

3-wire initiator terminal, spring-clamp connection, 0.14-1.5 mm², 6 pole, 13.5 A, 4 kV, gray, 2020-5311

Order No.: 43P3366
EAN: 4055143523509
MPN:
2020-5311
Series: TOPJOB S

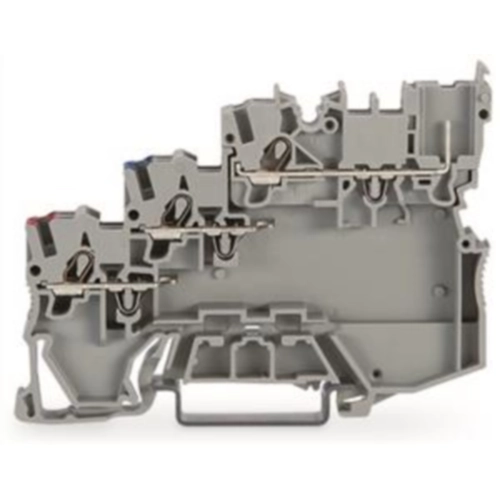

2020-5311 WAGO Series Terminals Image 1
2020-5311 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.9147 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.9147 €

3-Conductor sensor terminal block, 2020-5311, Wago

3-conductor initiator terminal block; for PNP (plus)-switching initiators; 1 mm²; push-in CAGE CLAMP®; 1.00 mm²; gray

Technical specifications
Version 3-wire initiator terminal
Number of terminals 4
Pin number 6 pole
Cable cross-section 0.14-1.5 mm²
AWG cross-section AWG 24 to 16
Rated surge voltage 4 kV
Rated current 13.5 A
Rated Voltage 250 V
Degree of soiling 3
Length 52.4 mm
Width 7 mm
Height 81.1 mm
Connection spring-clamp connection
Colour gray
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
