2020-1307 | WAGO

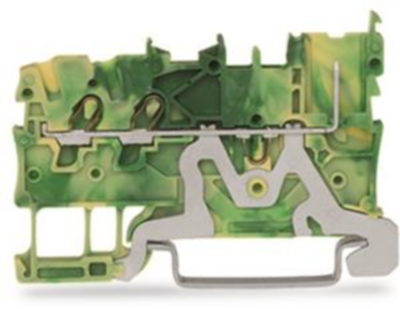

2-wire/1-pin PE basic terminal, spring-clamp connection, 0.14-1.5 mm², 1 pole, yellow/green, 2020-1307
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
10 pcs.
2.2729 €
50 pcs.
2.0706 €
100 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Conductor/1-pin ground carrier terminal block, 2020-1307, Wago
2-conductor/1-pin PE base terminal block; for mounting rail 35 x 15 and 35 x 7.5; push-in CAGE CLAMP®; 1.00 mm²; green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24 to 16 | |
| Number of terminals | 3 | |
| Length | 32.5 mm | |
| Height | 60.5 mm | |
| Width | 3.5 mm | |
| Pin number | 1 pole | |
| Colour | yellow/green | |
| Version | 2-wire/1-pin PE basic terminal | |
| Cable cross-section | 0.14-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
