2016-7611 | WAGO
Replacement power supply terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 76 A, 8 kV, gray, 2016-7611
Unit Price (€ / pc.)
7.3423 € *
Available in 5 Days: 105 pcs. - if ordered today
Total Price:
7.34 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3423 €
10 pcs.
6.7592 €
50 pcs.
6.1523 €
100 pcs.
5.5335 €
*incl. VAT plus shipping costs
Subject to prior sale

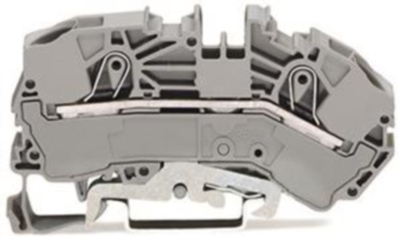

Spare supply terminal block, 2016-7611, WAGO
Spare supply terminal block, 16 mm², 12 mm, Push-in CAGE CLAMP, 16,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | replacement power supply terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.5-16 mm² | |
| AWG cross-section | AWG 20 to 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 76 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 40.8 mm | |
| Width | 12 mm | |
| Height | 85.7 mm | |
| Connection | spring-clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
