1-wire N disconnect terminal, spring-clamp connection, 0.5-16 mm², 57 A, 4 kV, blue, 2010-7114
N-disconnect terminal block, 2010-7114, WAGO

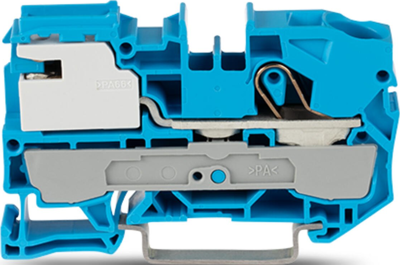

This N-disconnect terminal block is designed for quick and simple connections. Conductors should only be connected to this N-disconnect terminal block if their strip length is between 17 mm and 19 mm. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools-all thanks to its pluggable design. This N-disconnect terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 16 mm². It has one level. You can connect a single potential using one clamping point. The blue housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rail.
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 6 | |
| Rated current | 57 A | |
| Number of terminals | 1 | |
| Height | 67.3 mm | |
| Colour | blue | |
| Rated surge voltage | 4 kV | |
| Width | 10 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| Version | 1-wire N disconnect terminal | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.5-16 mm² |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
