2010-1208 | WAGO

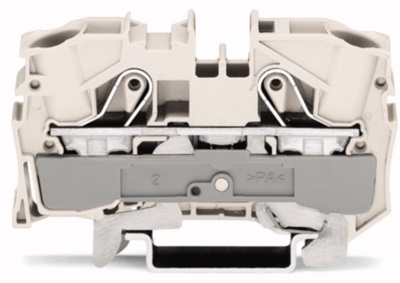

2-wire shield wire terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 57 A, 8 kV, white, 2010-1208
Unit Price (€ / pc.)
5.4621 € *
Available in 5 Days: 1,822 pcs. - if ordered today
Total Price:
5.46 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4621 €
10 pcs.
5.0218 €
50 pcs.
4.5696 €
100 pcs.
4.1174 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Conductor shield terminal block, 2010-1208, Wago
2-conductor shield clamp for applications Ex e II suitable white
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-wire shield wire terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.5-16 mm² | |
| AWG cross-section | AWG 20 to 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 57 A | |
| Rated Voltage | 600 V | |
| Degree of soiling | 3 | |
| Length | 36.9 mm | |
| Width | 10 mm | |
| Height | 67.8 mm | |
| Connection | spring-clamp connection | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
