2010-1207 | WAGO

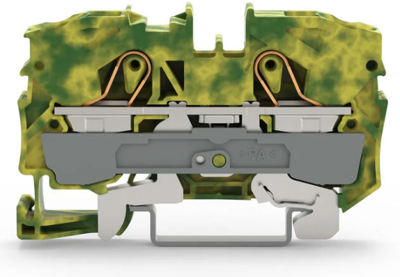

2-wire protective earth terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 51 A, 8 kV, yellow/green, 2010-1207

Order No.: 09H4831
EAN: 4017332076180
MPN:
2010-1207
Series: TOPJOB S
2010-1207 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
7.497 € *
Available in 5 Days: 58,840 pcs. - if ordered today
Total Price:
7.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.497 €

Ground terminal block, 2010-1207, WAGO

2-conductor ground terminal block, 10 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 10,00 mm², green-yellow.

Technical specifications
Version 2-wire protective earth terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 0.5-16 mm²
AWG cross-section AWG 20 to 6
Rated surge voltage 8 kV
Rated current 51 A
Rated Voltage 800 V
Degree of soiling 3
Length 36.9 mm
Width 10 mm
Height 67.8 mm
Connection spring-clamp connection
Colour yellow/green
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
