2006-7114 | WAGO

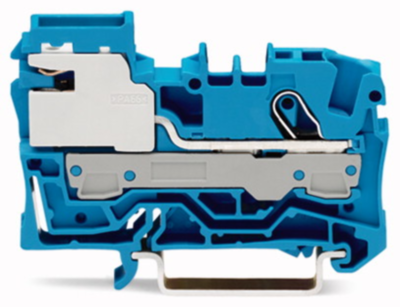

1-wire N disconnect terminal, spring-clamp connection, 0.5-10 mm², 1 pole, 51 A, 4 kV, blue, 2006-7114
Unit Price (€ / pc.)
4.4268 € *
Available: 30 pcs.
Available in 5 Days: 2,059 pcs. - if ordered today
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
4.0698 €
50 pcs.
3.7009 €
100 pcs.
3.3320 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Conductor N-disconnect terminal block, 2006-7114, Wago
1-conductor N-disconnect terminal block; 6 mm²; push-in CAGE CLAMP®; 6.00 mm²; blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-wire N disconnect terminal | |
| Number of terminals | 1 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.5-10 mm² | |
| AWG cross-section | AWG 20 to 8 | |
| Rated surge voltage | 4 kV | |
| Rated current | 51 A | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 | |
| Length | 38.1 mm | |
| Width | 7.5 mm | |
| Height | 60 mm | |
| Connection | spring-clamp connection | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
