2006-1675 | WAGO

2-wire disconnect terminal block, spring-clamp connection, 0.5-10 mm², 1 pole, 30 A, 8 kV, black, 2006-1675

Order No.: 44P9099
EAN: 4055143674485
MPN:
2006-1675
Series: TOPJOB S

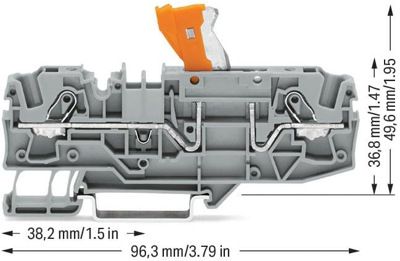

2006-1675 WAGO Series Terminals Image 1

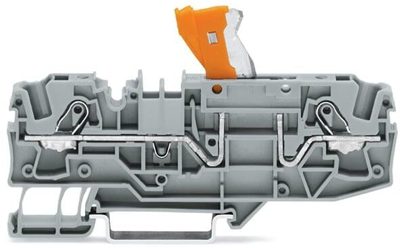

2006-1675 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
6.3189 € *
Available in 5 Days: 337 pcs. - if ordered today
Total Price:
6.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.3189 €

Terminal block, 2006-1675, WAGO

2-conductor disconnect terminal block, with pivoting knife disconnect, with test option, orange disconnect link, for DIN-rail 35 x 15 and 35 x 7.5, 6 mm², Push-in CAGE CLAMP, 6,00 mm², black.

Technical specifications
Filter Property Value
Rated Voltage 800 V
Connection spring-clamp connection
Rated current 30 A
Version 2-wire disconnect terminal block
Pin number 1 pole
Width 7.5 mm
Height 96.3 mm
AWG cross-section AWG 20 to 8
Degree of soiling 3
Rated surge voltage 8 kV
Colour black
Number of terminals 2
Cable cross-section 0.5-10 mm²
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
