2006-1671/1000-851 | WAGO

Earth conductor disconnect terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 30 A, gray, 2006-1671/1000-851

Order No.: 09H4744
EAN: 4045454789886
MPN:
2006-1671/1000-851
Series: TOPJOB S
2006-1671/1000-851 WAGO Series Terminals

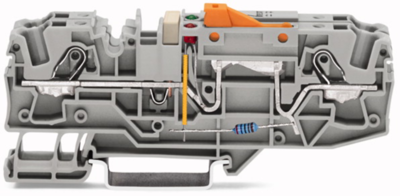

Image may differ
Unit Price (€ / pc.)
29.3335 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
29.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.3335 €

Ground conductor disconnect terminal block, 2006-1671/1000-851, Wago

Ground wire disconnect terminal with test option disconnect knife holder orange 230 V grey

Technical specifications
Filter Property Value
Width 15 mm
Connection spring-clamp connection
Version earth conductor disconnect terminal
Pin number 2 pole
Cable cross-section 0.5-10 mm²
Length 36.8 mm
Height 96.3 mm
Number of terminals 4
Degree of soiling 3
Colour gray
Rated current 30 A
Rated Voltage 24 V
AWG cross-section AWG 20 to 8
Logistics
Property Value
Customs tariff number 85365080
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
