2006-1671/1000-848 | WAGO

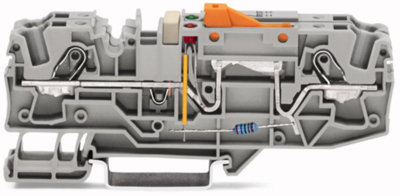

Earth conductor disconnect terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 30 A, gray, 2006-1671/1000-848
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
37.6278 € *
Available: 3 pcs.
Total Price:
37.63 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6278 €
10 pcs.
36.4973 €
25 pcs.
35.0336 €
50 pcs.
33.6294 €
*incl. VAT plus shipping costs
Subject to prior sale
Ground conductor disconnect terminal block, 2006-1671/1000-848, Wago
Ground wire disconnect terminal with test possibility disconnect knife holder orange 24 V gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | earth conductor disconnect terminal | |
| Number of terminals | 4 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-10 mm² | |
| AWG cross-section | AWG 20 to 8 | |
| Rated current | 30 A | |
| Rated Voltage | 24 V | |
| Degree of soiling | 3 | |
| Length | 36.8 mm | |
| Width | 15 mm | |
| Height | 96.3 mm | |
| Connection | spring-clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
