2004-1411/1000-401 | WAGO

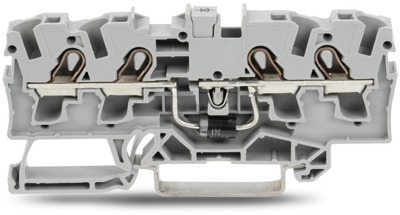

4 conductor component terminal with diode 1N5408, spring-clamp connection, 0.5-6.0 mm², 1 pole, 1.5 A, gray, 2004-1411/1000-401

Order No.: 09H4652
EAN: 4050821230830
MPN:
2004-1411/1000-401
Series: TOPJOB S
2004-1411/1000-401 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
5.0694 € *
Available: 29 pcs.
Total Price:
5.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.0694 €

4-Conductor diode terminal, 2004-1411/1000-401, Wago

Component terminal; 4 conductors; with diode 1N5408; anode right; for mounting rail 35 x 15 and 35 x 7,5; 4 mm²; Push-in CAGE CLAMP®; 4,00 mm²; grey

Technical specifications
Filter Property Value
Width 6.2 mm
Connection spring-clamp connection
Version 4 conductor component terminal with diode 1N5408
Pin number 1 pole
Cable cross-section 0.5-6.0 mm²
Length 32.9 mm
Height 78.7 mm
Number of terminals 4
Degree of soiling 3
Colour gray
Rated current 1.5 A
Rated Voltage 250 V
AWG cross-section AWG 20 to 10
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
