2004-1204 | WAGO

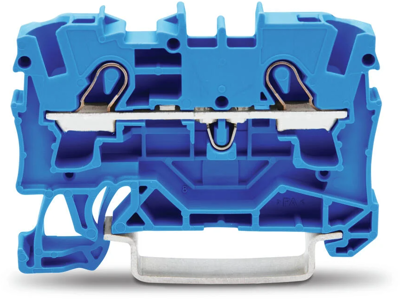

2-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 2 pole, 32 A, 8 kV, blue, 2004-1204
Unit Price (€ / pc.)
1.3447 € *
Available: 33 pcs.
Available in 5 Days: 12,673 pcs. - if ordered today
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2376 €
50 pcs.
1.1186 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature through terminal block series TOPJOB S for mounting rails TS 35, type Wago 2004-1204
Horizontal design, wire entrance from the front, particularly space-saving cage-clamp-S terminals.
Version: 2-conductor through terminal blocks, rated cross-section 4.0 mm²
Cross-sectional range type 2004: 0.5 to 4.0 mm²
Rated voltage to EN (degree of soiling): 800 V (3)
Rated current type 2004: 32 A
Dimensions type 2004: Length 52.5, Width 6.2, Height 33 mm (H measured from the top edge of the mounting rail).
Certifications: UL, CSA, KEMA etc. The blue terminals are approved for EEx-I applications.
Color: blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-wire feed-through terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-6.0 mm² | |
| AWG cross-section | AWG 20 to 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 32 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 32.9 mm | |
| Width | 6.2 mm | |
| Height | 52.3 mm | |
| Connection | spring-clamp connection | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
