2003-7640 | WAGO
Installation terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 4 kV, gray, 2003-7640
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Available in 5 Days: 1,929 pcs.
Leadtime: 3 Weeks **
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.9393 €
50 pcs.
2.6775 €
100 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale

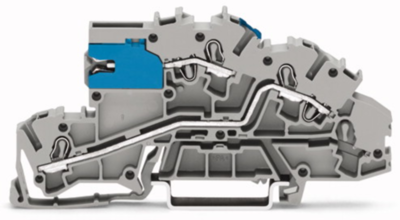

Multilevel installation terminal block, 2003-7640, WAGO
Multilevel installation terminal block, with operating slots, 2.5 mm², with N-disconnect slide link, NT/L, Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Version | Installationsetagenklemme | |
| Number of terminals | 3 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,25-4,0 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated surge voltage | 4 kV | |
| Rated current | 24 A | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 | |
| Length | 42.3 mm | |
| Width | 5.2 mm | |
| Height | 96 mm | |
| Connection | Federklemmanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
