2003-6662 | WAGO
Installation terminal block, push-in connection, 0.25-4.0 mm², 20 A, 4 kV, gray, 2003-6662
Unit Price (€ / pc.)
5.0456 € *
Available in 5 Days: 680 pcs. - if ordered today
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6886 €
50 pcs.
4.3197 €
100 pcs.
3.9270 €
*incl. VAT plus shipping costs
Subject to prior sale

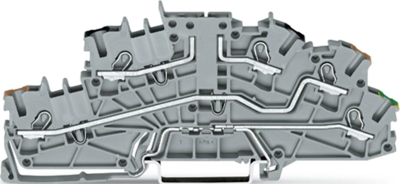

Multilevel installation terminal block, 2003-6662, WAGO
Multilevel installation terminal block, with operating slots, 2.5 mm², Carrier terminal block without knife, L/L/PE, Push-in CAGE CLAMP, 2.50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 20 A | |
| Number of terminals | 3 | |
| Height | 110 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Width | 5.2 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Version | installation terminal block | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.25-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
