2002-3234 | WAGO
Feed-through/feed-through/feed-through terminal block, spring-clamp connection, 0.25-2.5 mm², 3 pole, 24 A, 6 kV, blue, 2002-3234
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 5 Days: 916 pcs.
Leadtime: 3 Weeks **

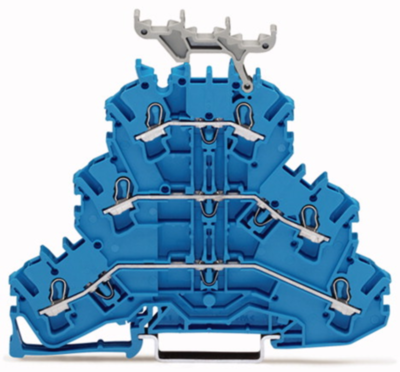

Triple-deck terminal block, 2002-3234, WAGO
Triple-deck terminal block, Through/through/through terminal block, N/N/N, with marker carrier, for Ex e II and Ex i applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Version | Durchgangs-/Durchgangs-/Durchgangsklemme | |
| Number of terminals | 6 | |
| Pin number | 3-polig | |
| Cable cross-section | 0,25-2,5 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 24 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 81.3 mm | |
| Width | 5.2 mm | |
| Height | 93.3 mm | |
| Connection | Federklemmanschluss | |
| Colour | blau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
