2002-3227 | WAGO

Protective conductor/feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 24 A, 6 kV, gray, 2002-3227

Order No.: 09H4450
EAN: 4044918691215
MPN:
2002-3227
Series: TOPJOB S
2002-3227 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
4.8909 € *
Available in 5 Days: 14,048 pcs. - if ordered today
Total Price:
4.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.8909 €

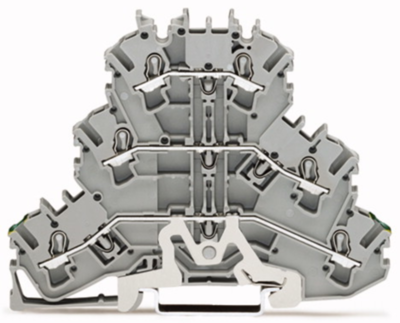

Triple-deck terminal block, 2002-3227, WAGO

Triple-deck terminal block, Ground conductor/through/through terminal block, 2.5 mm², PE/L/L, suitable for Ex e II applications, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Version Protective conductor/feed-through/feed-through terminal block
Number of terminals 2
Pin number 3 pole
Cable cross-section 0.25-4.0 mm²
AWG cross-section AWG 22 to 12
Rated surge voltage 6 kV
Rated current 24 A
Rated Voltage 500 V
Degree of soiling 3
Length 69.5 mm
Width 5.2 mm
Height 93.3 mm
Connection spring-clamp connection
Colour gray
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
