2002-2941 | WAGO

Double level double disconnect terminal block, spring-clamp connection, 0.25-4.0 mm², 16 A, 6 kV, gray, 2002-2941

Order No.: 45P8017
EAN: 4050821356561
MPN:
2002-2941
Series: TOPJOB S

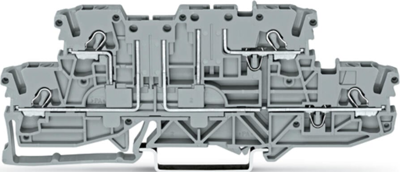

2002-2941 WAGO Series Terminals Image 1

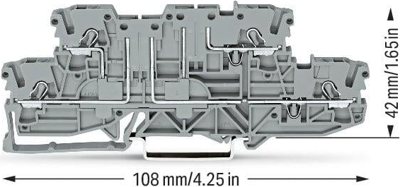

2002-2941 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
13.2447 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.24 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2447 €
10 pcs.
12.3165 €
50 pcs.
11.3288 €
100 pcs.
10.3173 €
*incl. VAT plus shipping costs
Subject to prior sale

Double level double disconnect terminal block, 2002-2941, WAGO

This double-deck terminal block simplifies electrical installations. The double-deck terminal block also serves as carrier terminal block as well as a carrier terminal block for modules and plugs. Strip lengths must be between 10 mm and 12 mm when connecting conductors to this double-deck terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This double-deck terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It comes with two levels and four clamping points for connecting four potentials. The gray housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using DIN-35 rail.

Technical specifications
Filter Property Value
Rated surge voltage 6 kV
Rated Voltage 400 V
Degree of soiling 3
Number of terminals 4
Connection spring-clamp connection
AWG cross-section AWG 22 to 12
Cable cross-section 0.25-4.0 mm²
Rated current 16 A
Width 5.2 mm
Version double level double disconnect terminal block
Height 108 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
