2002-2717 | WAGO

Protective conductor/feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, gray, 2002-2717

Order No.: 43P3045
EAN: 4055143622578
MPN:
2002-2717
Series: TOPJOB S

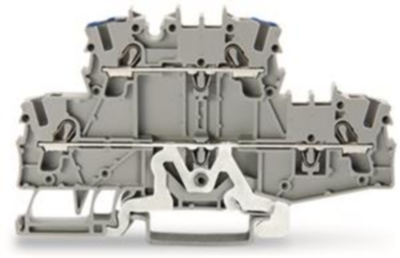

2002-2717 WAGO Series Terminals Image 1
2002-2717 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.046 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.046 €

Double-deck terminal block, 2002-2717, WAGO

Double-deck terminal block, Ground conductor/through terminal block, 2.5 mm², PE/N, suitable for Ex e II applications, without marker carrier, Blue conductor entry upper deck, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Colour gray
AWG cross-section AWG 22 to 12
Rated current 24 A
Width 7.2 mm
Height 69.9 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 4
Pin number 2 pole
Version protective conductor/feed-through terminal
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 800 V
Rated surge voltage 8 kV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
