2002-2707 | WAGO

4-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, yellow/green, 2002-2707

Order No.: 43P3042
EAN: 4055143622547
MPN:
2002-2707
Series: TOPJOB S

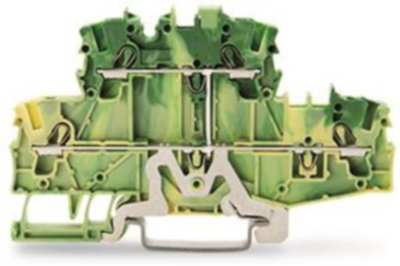

2002-2707 WAGO Series Terminals Image 1
2002-2707 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.6648 €

Double-deck terminal block, 2002-2707, WAGO

Double-deck terminal block, 4-conductor ground terminal block, 2.5 mm², PE, suitable for Ex e II applications, without marker carrier, internal commoning, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Number of terminals 4
Degree of soiling 3
Rated current 24 A
Connection spring-clamp connection
Cable cross-section 0.25-4.0 mm²
Height 69.9 mm
Rated Voltage 800 V
Colour yellow/green
Version 4-wire protective earth terminal
Width 7.2 mm
Rated surge voltage 8 kV
Pin number 2 pole
AWG cross-section AWG 22 to 12
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
