2002-2704 | WAGO

Feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, blue, 2002-2704

Order No.: 43P3041
EAN: 4055143622530
MPN:
2002-2704
Series: TOPJOB S

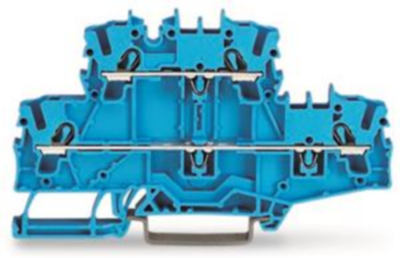

2002-2704 WAGO Series Terminals Image 1
2002-2704 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
2.7013 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4871 €
50 pcs.
2.2610 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-deck terminal block, 2002-2704, WAGO

Double-deck terminal block, Through/through terminal block, N/N, without marker carrier, for Ex e II and Ex i applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.

Technical specifications
Number of terminals 4
Degree of soiling 3
Rated current 24 A
Connection spring-clamp connection
Cable cross-section 0.25-4.0 mm²
Height 69.9 mm
Rated Voltage 800 V
Colour blue
Version feed-through/feed-through terminal block
Width 7.2 mm
Rated surge voltage 8 kV
Pin number 2 pole
AWG cross-section AWG 22 to 12
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
