2002-2647 | WAGO
Protective conductor/feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, gray, 2002-2647
Unit Price (€ / pc.)
5.3788 € *
Standard delivery time from the manufacturer is: 3 Weeks

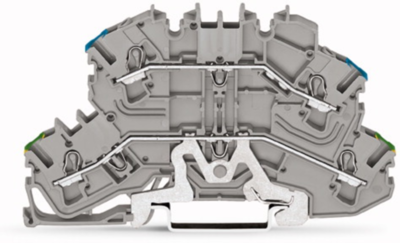

Double-deck terminal block, 2002-2647, WAGO
Double-deck terminal block, Ground conductor/through terminal block, same profile as double-deck disconnect terminal block, 2.5 mm², PE/N, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Width | 7.2 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Pin number | 2 pole | |
| Number of terminals | 4 | |
| AWG cross-section | AWG 22 to 12 | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Version | protective conductor/feed-through terminal | |
| Height | 69.9 mm | |
| Rated current | 24 A | |
| Cable cross-section | 0.25-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
