2002-2611/1000-867 | WAGO

2-conductor fuse terminal block, 2002-2611/1000-867, WAGO

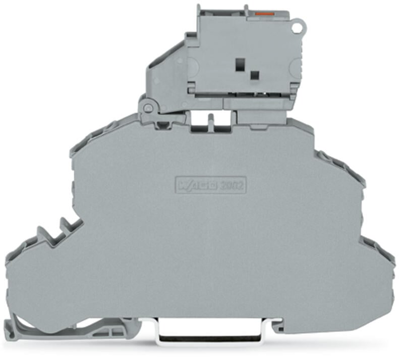

This double-deck terminal block (item number 2002-2611/1000-867) provides hassle-free electrical installation. The double-deck terminal block also serves as a fuse terminal block. A conductor can only be connected to this double-deck terminal block if its strip length is between 10 mm and 12 mm. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector delivers reliable performance. Push-in CAGE CLAMP technology provides a universal connection solution for any conductor type. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This double-deck terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It comes with two levels and four clamping points for connecting two potentials. The gray housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.
