2002-2607 | WAGO

4-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, yellow/green, 2002-2607

Order No.: 09H4404
EAN: 4050821272021
MPN:
2002-2607
Series: TOPJOB S
2002-2607 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
6.2832 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.2832 €

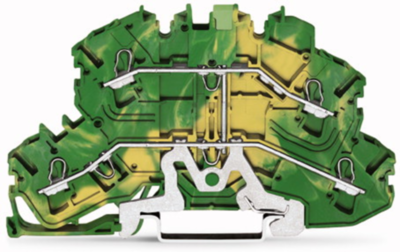

Double-deck terminal block, 2002-2607, WAGO

Double-deck terminal block, 4-conductor ground terminal block, same profile as double-deck disconnect terminal block, 2.5 mm², PE, internal commoning, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Colour yellow/green
AWG cross-section AWG 22 to 12
Rated current 24 A
Width 7.2 mm
Height 69.9 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 4
Pin number 2 pole
Version 4-wire protective earth terminal
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 600 V
Rated surge voltage 6 kV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
