2002-2428 | WAGO
4-wire double level terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, gray, 2002-2428
Unit Price (€ / pc.)
4.4744 € *
Standard delivery time from the manufacturer is: On Request

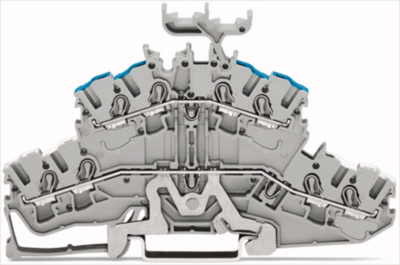

Double deck terminal block, 2002-2428, WAGO
4-conductor double deck terminal block, Shield/through terminal block, 2.5 mm², Shielding/L, without marker carrier, Blue conductor entry upper deck, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Width | 5.2 mm | |
| Colour | gray | |
| Rated surge voltage | 8 kV | |
| Pin number | 2 pole | |
| Number of terminals | 8 | |
| AWG cross-section | AWG 22 to 12 | |
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Version | 4-wire double level terminal block | |
| Height | 105.1 mm | |
| Rated current | 24 A | |
| Cable cross-section | 0.25-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
