2002-2427 | WAGO

4-wire double level terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, gray, 2002-2427

Order No.: 09H4386
EAN: 4050821144861
MPN:
2002-2427
Series: TOPJOB S
2002-2427 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
4.4744 € *
Available in 5 Days: 648 pcs. - if ordered today
Total Price:
4.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4744 €

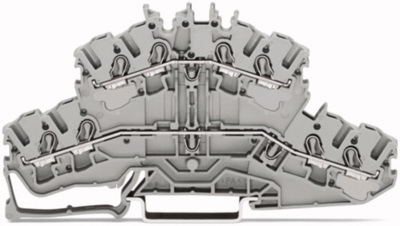

Double deck terminal block, 2002-2427, WAGO

4-conductor double deck terminal block, Ground conductor/through terminal block, 2.5 mm², PE/L, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Number of terminals 8
Degree of soiling 3
Rated current 24 A
Connection spring-clamp connection
Cable cross-section 0.25-4.0 mm²
Height 105.1 mm
Rated Voltage 800 V
Colour gray
Version 4-wire double level terminal block
Width 5.2 mm
Rated surge voltage 8 kV
Pin number 2 pole
AWG cross-section AWG 22 to 12
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
