2002-2214/1000-489 | WAGO

Double-decker component terminal with 2 diodes 1N4007, push-in connection, 0.25-4.0 mm², 4 pole, 0.5 A, gray, 2002-2214/1000-489

Order No.: 44P9562
EAN: 4045454375621
MPN:
2002-2214/1000-489
Series: TOPJOB S

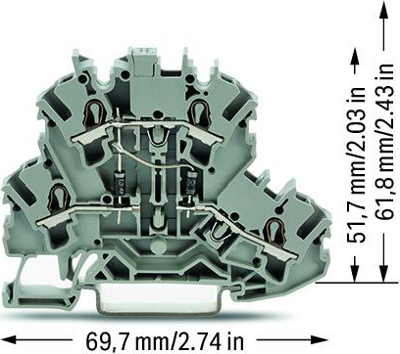

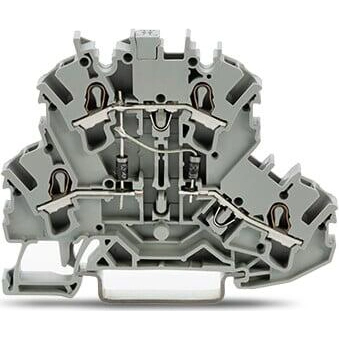

2002-2214/1000-489 WAGO Series Terminals Image 1
2002-2214/1000-489 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
16.1959 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
16.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.1959 €

Component terminal block, 2002-2214/1000-489, WAGO

Component terminal block, double-deck, 2 x 1N4007,rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, gray.

Technical specifications
Connection Push-in-Anschluss
Number of terminals 2
Version Doppelstock-Bauelementklemme mit 2 Dioden 1N4007
AWG cross-section AWG 22 bis 12
Rated Voltage 250 V
Width 5.2 mm
Colour grau
Height 69.7 mm
Length 51.7 mm
Cable cross-section 0,25-4,0 mm²
Rated current 0.5 A
Pin number 4-polig
Degree of soiling 2
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
