2002-2207/099-000 | WAGO

Double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, yellow/green, 2002-2207/099-000

Order No.: 09H4330
EAN: 4050821266419
MPN:
2002-2207/099-000
Series: TOPJOB S
2002-2207/099-000 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
4.9861 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.9861 €

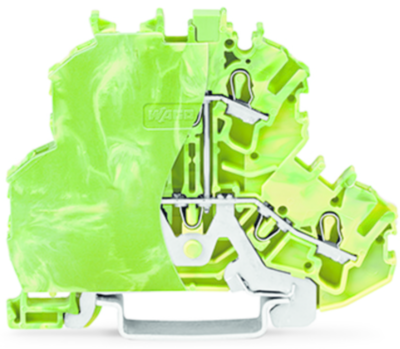

Double-deck terminal block, 2002-2207/099-000, WAGO

Double-deck terminal block, 4-conductor ground terminal block, with end plate, 2.5 mm², PE, without marker carrier, internal commoning, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Version double level terminal
Number of terminals 4
Pin number 2 pole
Cable cross-section 0.25-4.0 mm²
AWG cross-section AWG 22 to 12
Rated surge voltage 8 kV
Rated current 24 A
Rated Voltage 800 V
Degree of soiling 3
Length 51.7 mm
Width 6.2 mm
Height 69.7 mm
Connection spring-clamp connection
Colour yellow/green
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
