2002-1907 | WAGO

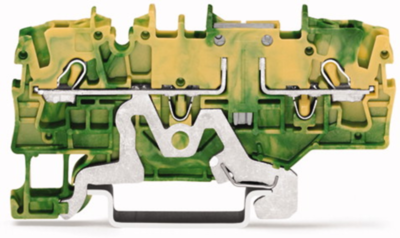

2-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, yellow/green, 2002-1907
Unit Price (€ / pc.)
4.7719 € *
Standard delivery time from the manufacturer is: On Request
Ground terminal block, 2002-1907, Wago
2-conductor PE terminal block with test facility with additional bridging contour identical to 2-conductor disconnect terminal block green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Width | 5.2 mm | |
| Colour | yellow/green | |
| Pin number | 1 pole | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 22 to 12 | |
| Length | 32.9 mm | |
| Degree of soiling | 3 | |
| Version | 2-wire protective earth terminal | |
| Height | 72.9 mm | |
| Cable cross-section | 0.25-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
