2002-1872/401-000 | WAGO

4-wire disconnect and measuring terminal, spring-clamp connection, 0.25-4.0 mm², 16 A, 6 kV, orange, 2002-1872/401-000

Order No.: 09H4288
EAN: 4045454826161
MPN:
2002-1872/401-000
Series: TOPJOB S
2002-1872/401-000 WAGO Series Terminals

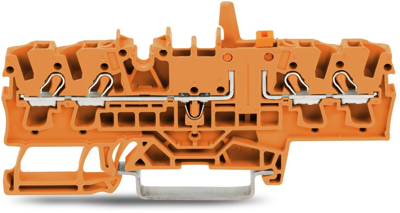

Image may differ
Unit Price (€ / pc.)
3.4748 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4748 €

4-Conductor disconnect/test terminal block, 2002-1872/401-000, Wago

4-conductor disconnect and measuring terminal block; with mechanical locking; with test facility; disconnect blade holder orange; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2.50 mm²; orange

Technical specifications
Colour orange
AWG cross-section AWG 22 to 12
Rated current 16 A
Width 5.2 mm
Height 87.5 mm
Length 32.9 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 4
Version 4-wire disconnect and measuring terminal
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 400 V
Rated surge voltage 6 kV
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
