2002-1801 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.25-2.5 mm², 16 A, 6 kV, gray, 2002-1801

Order No.: 09H4276
EAN: 4045454974671
MPN:
2002-1801
Series: TOPJOB S
2002-1801 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
3.3558 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.3558 €

Through terminal block, 2002-1801, WAGO

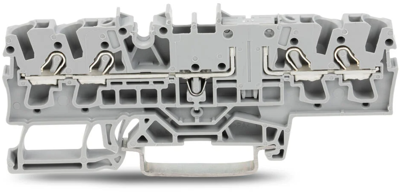

4-conductor through terminal block, 2.5 mm², with test option, same profile as 4-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Length 32.9 mm
Number of terminals 4
Degree of soiling 3
Rated current 16 A
Connection spring-clamp connection
Cable cross-section 0.25-2.5 mm²
Height 87.5 mm
Rated Voltage 400 V
Colour gray
Version 4-wire feed-through terminal
Width 5.2 mm
Rated surge voltage 6 kV
AWG cross-section AWG 22 to 12
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
