2002-1421/1000-434 | WAGO

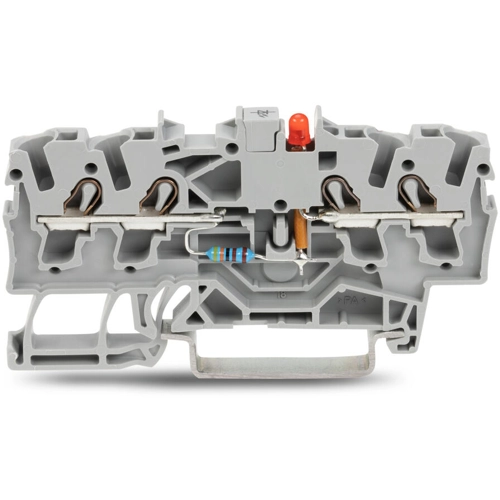

4 conductor component terminal block with red LED, spring-clamp connection, 0.25-4.0 mm², 1 pole, 25 mA, gray, 2002-1421/1000-434

Order No.: 09H4230
EAN: 4045454537708
MPN:
2002-1421/1000-434
Series: TOPJOB S
2002-1421/1000-434 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
5.9143 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.9143 €

4-Conductor LED terminal, 2002-1421/1000-434, Wago

Component terminal block; 4 conductors; LED red; DC 24 V; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2.50 mm²; gray

Technical specifications
Colour gray
AWG cross-section AWG 22 to 12
Rated current 25 mA
Width 5.2 mm
Height 69.9 mm
Length 32.9 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 4
Pin number 1 pole
Version 4 conductor component terminal block with red LED
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 24 V
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
