2002-1408 | WAGO

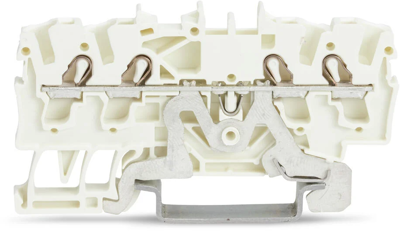

4-wire shield wire terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, white, 2002-1408

Order No.: 09H4226
EAN: 4045454719494
MPN:
2002-1408
Series: TOPJOB S
2002-1408 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
3.5343 € *
Available in 5 Days: 3,053 pcs. - if ordered today
Total Price:
3.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.5343 €

4-Conductor shield terminal block, 2002-1408, Wago

4-conductor shield clamp; 2.5 mm²; lateral and central labeling; for mounting rail 35 x 15 and 35 x 7.5; push-in CAGE CLAMP®; 2.50 mm²; white

Technical specifications
Colour white
AWG cross-section AWG 22 to 12
Rated current 24 A
Width 5.2 mm
Height 69.9 mm
Length 32.9 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 4
Pin number 1 pole
Version 4-wire shield wire terminal
Connection spring-clamp connection
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
