2002-1321/1000-434 | WAGO

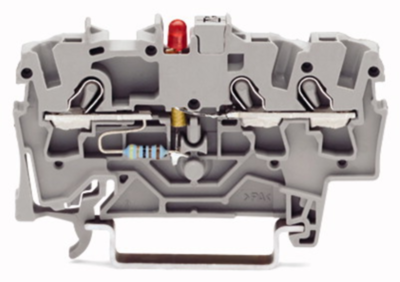

3 conductor component terminal block with red LED, spring-clamp connection, 0.75-4.0 mm², 1 pole, 25 mA, gray, 2002-1321/1000-434
Unit Price (€ / pc.)
5.5335 € *
Standard delivery time from the manufacturer is: 3 Weeks
3-Conductor LED terminal block, 2002-1321/1000-434, Wago
3-wire LED terminal block with red LED DC 24 V gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 3 | |
| AWG cross-section | AWG 22 to 12 | |
| Colour | gray | |
| Connection | spring-clamp connection | |
| Rated Voltage | 24 V | |
| Cable cross-section | 0.75-4.0 mm² | |
| Width | 5.2 mm | |
| Height | 59.2 mm | |
| Version | 3 conductor component terminal block with red LED | |
| Pin number | 1 pole | |
| Length | 32.9 mm | |
| Rated current | 25 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
