2002-1311/1000-410 | WAGO

3 conductor component terminal with diode 1N4007, spring-clamp connection, 0.75-4.0 mm², 500 mA, gray, 2002-1311/1000-410

Order No.: 09H4211
EAN: 4045454537661
MPN:
2002-1311/1000-410
Series: TOPJOB S
2002-1311/1000-410 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
3.7366 € *
Available: 69 pcs.
Total Price:
3.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7366 €

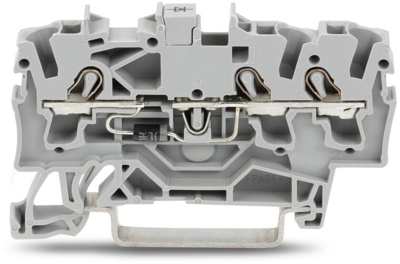

3-Conductor diode terminal, 2002-1311/1000-410, Wago

Component terminal block; 3 conductor; with diode 1N4007; anode left; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; push-in CAGE CLAMP®; 2.50 mm²; gray

Technical specifications
Filter Property Value
Width 5.2 mm
Connection spring-clamp connection
Version 3 conductor component terminal with diode 1N4007
Cable cross-section 0.75-4.0 mm²
Length 32.9 mm
Height 59.2 mm
Number of terminals 3
Degree of soiling 3
Colour gray
Rated current 500 mA
Rated Voltage 250 V
AWG cross-section AWG 22 to 12
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
