2002-1211/1000-411 | WAGO

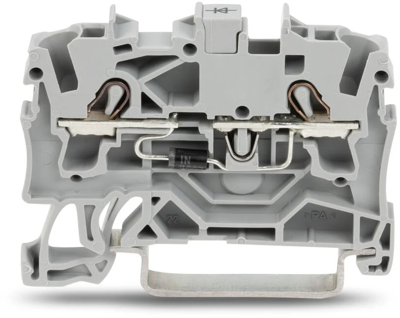

2 conductor component terminal with diode 1N4007, spring-clamp connection, 0.25-2.5 mm², 1 pole, 500 mA, gray, 2002-1211/1000-411

Order No.: 09H4197
EAN: 4045454537654
MPN:
2002-1211/1000-411
Series: TOPJOB S
2002-1211/1000-411 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
5.4502 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4502 €

2-Conductor diode terminal, 2002-1211/1000-411, Wago

Component terminal block; 2 wires; with diode 1N4007; anode right; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; push-in CAGE CLAMP®; 2.50 mm²; gray

Technical specifications
Filter Property Value
Width 5.2 mm
Connection spring-clamp connection
Version 2 conductor component terminal with diode 1N4007
Pin number 1 pole
Cable cross-section 0.25-2.5 mm²
Length 32.9 mm
Height 48.5 mm
Number of terminals 2
Colour gray
Rated current 500 mA
Rated Voltage 250 V
AWG cross-section AWG 22 to 12
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
