2001-1211/1000-411 | WAGO

2-wire diode terminal, spring-clamp connection, 0.25-2.5 mm², 1 pole, 500 mA, gray, 2001-1211/1000-411

Order No.: 09H4127
EAN: 4045454537555
MPN:
2001-1211/1000-411
Series: TOPJOB S
2001-1211/1000-411 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
3.2606 € *
Available: 98 pcs.
Total Price:
3.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.2606 €

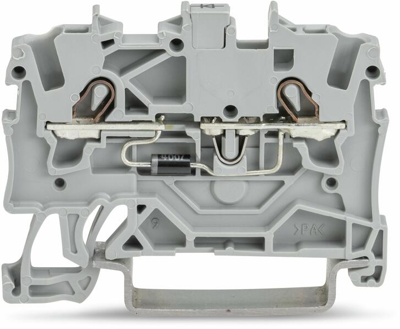

2-Conductor diode terminal, 2001-1211/1000-411, Wago

Component terminal block; 2 wires; with diode 1N4007; anode right; for mounting rail 35 x 15 and 35 x 7.5; 1.5 mm²; push-in CAGE CLAMP®; 1.50 mm²; gray

Technical specifications
Filter Property Value
Width 4.2 mm
Connection spring-clamp connection
Version 2-wire diode terminal
Pin number 1 pole
Cable cross-section 0.25-2.5 mm²
Length 32.9 mm
Height 48.5 mm
Number of terminals 2
Degree of soiling 3
Colour gray
Rated current 500 mA
Rated Voltage 250 V
AWG cross-section AWG 22 to 14
Logistics
Property Value
Customs tariff number 85369010
Country of origin CN
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
