2000-5417 | WAGO
4-wire initiator terminal, push-in connection, 0.14-1.5 mm², 13.5 A, 4 kV, gray, 2000-5417
Unit Price (€ / pc.)
12.4474 € *
Available: 4 pcs.
Available in 5 Days: 159 pcs. - if ordered today
Total Price:
12.45 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4474 €
10 pcs.
11.4478 €
50 pcs.
10.5315 €
100 pcs.
9.5795 €
*incl. VAT plus shipping costs
Subject to prior sale

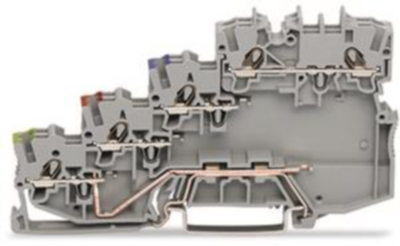

Sensor terminal block, 2000-5417, WAGO

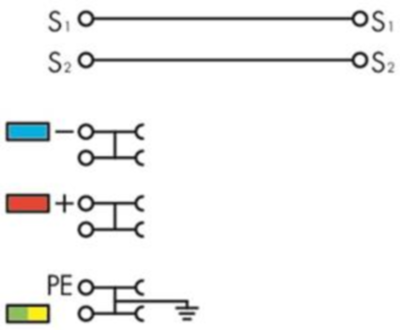

4-conductor sensor terminal block, with ground contact, with colored conductor entries, 1 mm², Push-in CAGE CLAMP, 1,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 16 | |
| Length | 52.4 mm | |
| Rated current | 13.5 A | |
| Number of terminals | 10 | |
| Height | 97.3 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Width | 7 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Version | 4-wire initiator terminal | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.14-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
